MBR Hollow Fiber Membrane

  • MBR  Membrane
  • MBR  Membrane
  • MBR  Membrane
MBR  Membrane MBR  Membrane MBR  Membrane

MBR Membrane

  • Product No: MBR
  • Material: PVDF
  • Membrane Length:1850
  • Membrane width:655
  • Description: MBR Membrane China FactoryTube Settler Systems for Clarification, tube settlers, MBBR, biofilter ,MBR fiber follow membrane, disc diffusers and other plastic material for water treatment. NET's su
  • INQUIRY   EMAIL

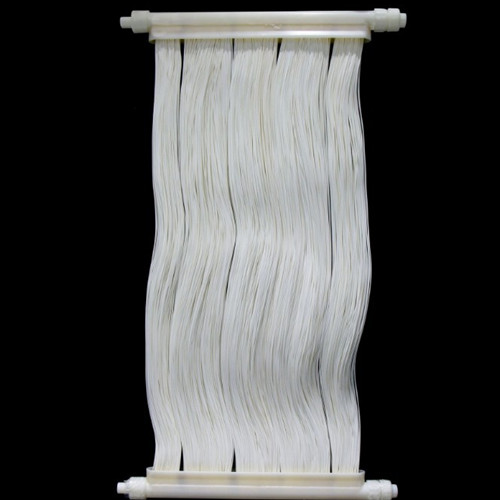

MBR hollow fiber membrane

Features

♦New curtain style structure

♦Simple structure, easy maintenance, avoided the gather in membrane root of fiber, hair and sludge

♦Patented spinning technology, special support structure, solved the broken-silk problem

♦Good hydrophilicity, more stable operating flux

♦High filtration accuracy, not easy to be pollution clogging , good permeate quality


MBR Membrane design flux reference table

Type of sewage

design run membrane flux l/m2. h

The maximum operating membrane flux L/m2 is allowed when the water fluctuates greatly. h

remarks

Secondary settling tank effluent

23-25

30

Standard effluent, pure membrane filtration

Domestic / Municipal Waste Water

19-22

25

Good biodegradability

Aquaculture wastewater

17-18

22

Good biochemistry

Industrial sewage

15-16

17-18

General biodegradability

Landfill Leachate

10--11

13-14

General biodegradability

Directions: L/m2. h refers to the water output of a flat rice film for an hour in units such as:19L/m2. h Refers to 19 litres of effluent from a flat rice membrane for an hour

For large-scale mbr film projects, especially for complex industrial wastewater, it is best to explore and verify the process and design parameters by trial or pilot tests



MBR membrane sheet specification

product model
MBR-10-PVDF
MBR-15-PVDF
MBR-20-PVDF
Component Length A
1050mm
1550mm
1850mm
Component Width B
655mm
655mm
655mm
Outlet diameter
DN15
DN15
DN15
Air intake diameter
DN15
DN15
DN15
Component membrane area
10
15
20
Shell material
ABS/UPVC
ABS/UPVC
ABS/UPVC
Hollow fiber membrane material
PVDF (Enhanced)
PVDF (Enhanced)
PVDF (Enhanced)
Inner diameter of hollow fiber membrane
0.05um
0.05um
0.05um
Outer diameter of hollow fiber membrane
1.0mm
1.0mm
1.0mm
Outer diameter of hollow fiber membrane
2.4mm
2.4mm
2.4mm
Turbidity of effluent
≤1NTU
≤1NTU
≤1NTU
effluent suspended matter SS
≤1mg/L
≤1mg/L
≤1mg/L
life
3-5years
3-5years
3-5years
Temperature tolerance
1-40
1-40
1-40
PH tolerance
2--13
2--13
2--13
Operator
Negative pressure adsorption
Negative pressure adsorption
Negative pressure adsorption
Water flow
2.5-3.0t/d
3.5-5.0t/d
5.0-7.0t/d
Maximum transmembrane pressure difference
-0.08MPa
-0.08MPa
-0.08MPa
Effluent cycle
out 8minkeep 2min
out 8minkeep 2min
out 8minkeep 2min
Maximum backwash pressure
0.1MPa
0.1MPa
0.1MPa
Chemical sterilization agents
chloros
chloros
chloros
Chemical cleaning cycle
6-12 months
6-12 months
6-12 months
Chemical cleaning agents
Citric acid, sodium hydroxide
Citric acid, sodium hydroxide
Citric acid, sodium hydroxide

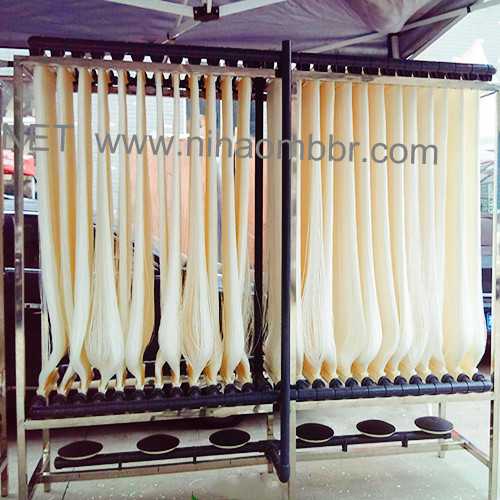

Specification of MBR Casettes

watertreatment capacitym3/d
MBR part No.
Out diamensions(L xW x H mm)
Number of MBR (pieces)
MBR Square Area (m2
5--7
MBR-10X2
700x480x800
2
20
10
MBR-10X3
700x380x1400
3
30
20
MBR-10X6
700x680x1400
6
60
30
MBR-10X9
980x700x1400
9
90
40
MBR-10X12
1180x700x1400
12
120
50
MBR-10X14.5
1480x700x1400
14
140
60
MBR-10x16
1680x700x1400
16
160
80
MBR-10x22
2280x700x1400
22
220
100
MBR-10X27
2780x700x1400
27
270
80
MBR-15X14
1580x700x1900
14
210
100
MBR-15X18
1880x700x1900
18
270
120
MBR-15X22
2280x700x1900
22
330
150
MBR-15X27
2800x700x1900
27
405
200
MBR-15X36
1880x1380x1900
36
540
250
MBR-15x36
2400x1380x1900
46
690
300
MBR-15X54
2800x1380x1900
54
810
material of Cassete
SS304 stainless steel
tube diffuse
UPVC tube with holes.
water tube material
ABS/UPVC

APPLICATION :

Variety industry wastewater and municipal sewage and has achieved many reference in recycling sewage,

polysilicon wastewater, chemical fiber wastewater, papermaking wastewater, slaughterhouse wastewater and leachate.




Use conditions and methods

1. Hydrophilic and moisturizing membrane

Reinforced composite PVDF membrane uses hydrophilic modified PVDF raw materials, the membrane has good hydrophilicity, and no hydrophilic treatment is needed in the site. However, if the diaphragm is not put into use immediately after it is installed, or it needs to be parked for a certain period of time during use, please ensure that the diaphragm is immersed in water or it is always in a wet condition.

2. Maintenance of membrane flux and membrane cleaning

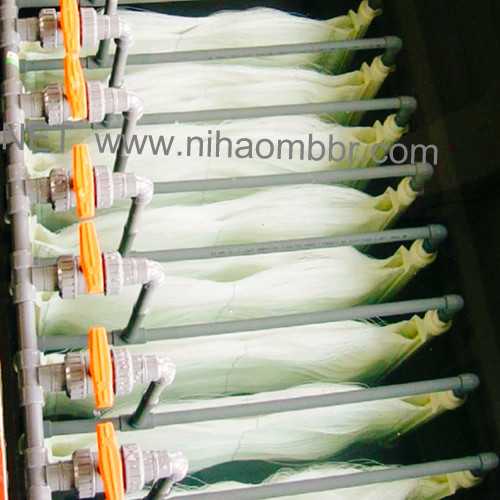

Diaphragm aeration system construction using perforated aeration, aeration of bubbles and water flow, so that the film full of jitter, to achieve self-cleaning of the membrane. Using the intermittent operation mode, the self-priming pump can suck for 10 to 12 minutes and stop for 2 to 3 minutes, which can effectively prevent the clogging of the membrane holes and ensure long-term and stable operation of the membrane separation. When used for the first time, the microbiological culture of the biochemical pool achieves good activity, and the membrane is only put into operation when the viscosity is small.
