Tube Settlers Media

  • Tube Settler Media
  • Tube Settler Media
  • Tube Settler Media
Tube Settler MediaTube Settler MediaTube Settler Media

Tube Settler Media

  • Item No: TL25PP
  • Material:PP
  • Aperture size:25mm
  • color:white
  • Description: Tube Settler Systems for Clarification, tube settlers, MBBR, biofilter ,MBR fiber follow membrane, disc diffusers and other plastic material for water treatment. NET's supplier with 16 years focus
  • INQUIRY   EMAIL

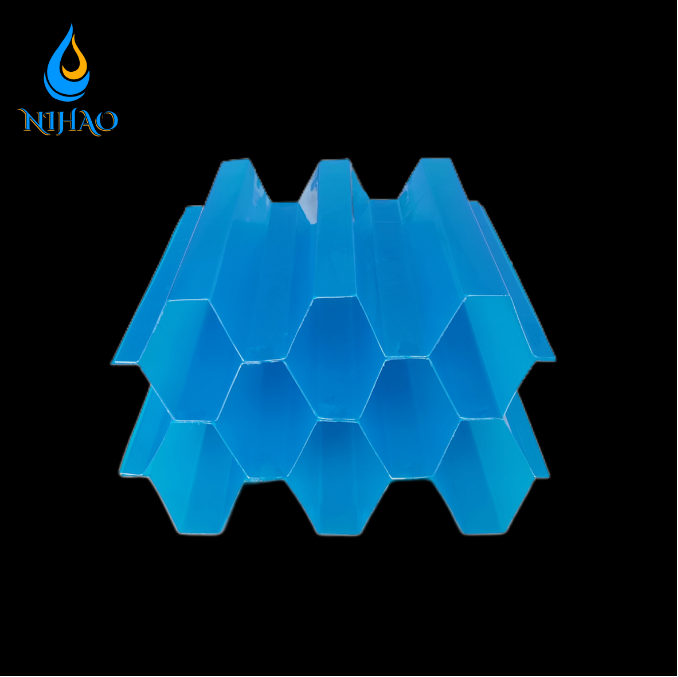

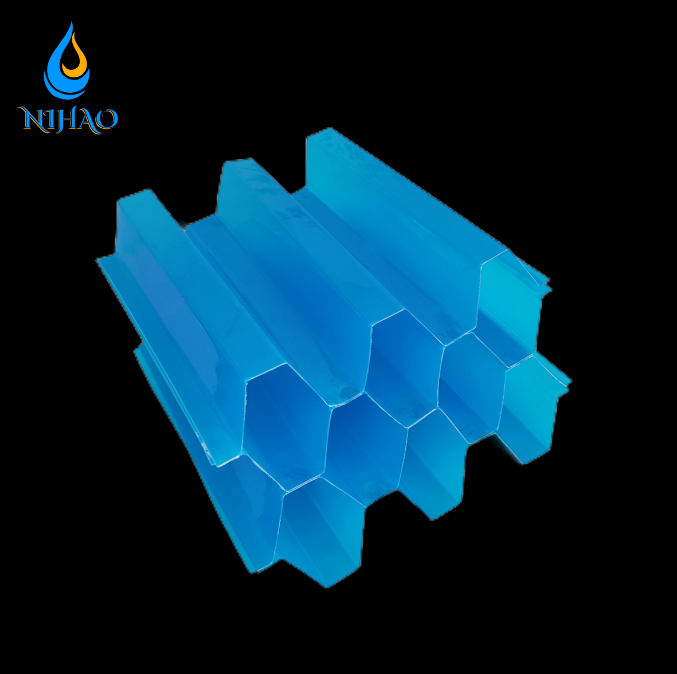

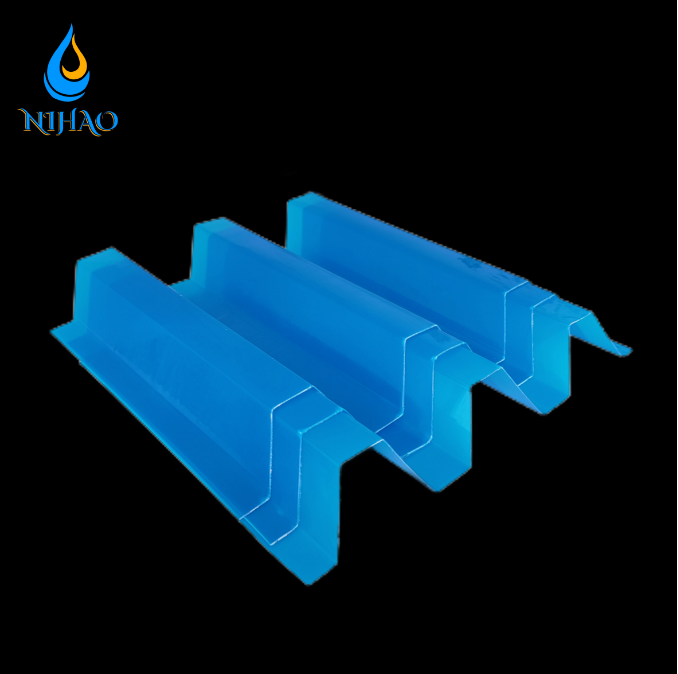

Tube Settler Media

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.
Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other,
This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.

Advantages for tube settlers

1. Process efficiency----From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope

2. Flexible dimensions---It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.

3. Easy handling----Simple on site assembly method grants low cost, safe delivery to any place in the world.

4. Sophisticated support system-----With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.

5.Strong and high quality material----We provides high stability of the modules for easy maintenance - PP material approved for high standards of potable water applications



Item Dia
A
B
C
D(Theoretically)
D(Actually)
Dia 25mm
30mm
15mm
15mm
15mm
<15mm
Dia 35mm
40mm
20mm
20mm
17.5mm
<20mm
Dia 50mm
60mm
28mm
25mm
25mm
<30mm
Dia 80mm
80mm
35mm
35mm
40mm
<45mm


Technical Specification

Item Number
Aperture size
piece
material
wall thickness
color
TL25PP
25mm
60
PP
0.4mm.0.8mm,1.0mm,1.2mm
white
TL35PP
35mm
44
TL50PP
50mm
32
TL80PP
80mm
20
TL30PVC
25mm
60
PVC
0.4mm.0.6mm,0.8mm,1.0mm
Black or Blue
TL35PVC
35mm
44
TL50PVC
50mm
32
TL80PVC
80mm
20


Usage of Tube Settler

1.Sediment pool, wastewater treated pool, Accelerated Sediment pool and clarifier

2.Metal processing wastewater treatment

3.Surface water purification

4.Treatment of washing water

5.Paper industry wastewater treatment


Factory and production


Package and shipment
